Product Details
APPLICATION
This connector is used to connect a low voltage A.B.C. (Aerial Bundled Conductors) network to another low voltage aluminum alloy or copper bare conductors network. The section of the bare conductors is from 7 to 240mm² depending on the model. The section of the insulated cables is from 25 to 150mm² depending on the model.
DESCRIPTION
Connector end cap:
- The connector end cap is flexible so that to feel good tap conductor insertion simply by hand.
- It is carrying membranes instead of grease, granting watertightness around tap conductor end on long terms basis.
- It is glued on connector body so that to avoid eventual loss during handling, installation and environment (wind, wild life…).
- It can be equipped with a hard end cap, gripping and covering so, in case rigid cover is required.

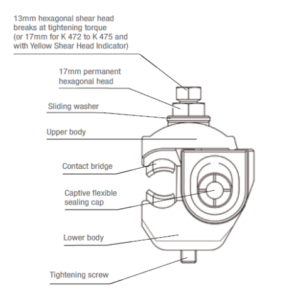

Connector general features:
- The tightening screws are potential free.
- Tightening efficiency is ensured by a shear head screw.
- Connection on the tap conductors is established using insulation piercing technology.
- This connector meets the criteria of NF C 33-020 and EN 50-483.

Certificate of Product Acceptance:
- Based on the assessment by TNB Labs Sdn Bhd. , the above equipment has complied with the specified requirements of TNB Technical Specification and is hereby accepted for use in the TNB system.
